QAbstractItemModel Class

成员函数

QAbstractItemModel::QAbstractItemModel(QObject *parent = Q_NULLPTR)

构造函数, parent 是父对象.

[virtual] QAbstractItemModel::~QAbstractItemModel()

析构函数.

[protected] void QAbstractItemModel::beginInsertColumns(const QModelIndex &parent, int first, int last)

开始一个列插入操作.

在子类中重新实现 insertColumns() 时, 你必须在将数据插入模型的底层数据存储之前调用此函数.

parent 索引对应于插入新列的父索引; first 和 last 是新列插入后的列号.

注意: 此函数发出 columnsAboutToBeInserted() 信号, 在插入数据之前, 已连接的视图(或代理)必须处理该信号. 否则, 视图可能会以无效状态结束.

参见 endInsertColumns().

[protected] void QAbstractItemModel::beginInsertRows(const QModelIndex &parent, int first, int last)

开始一个行插入操作.

在子类中重新实现 insertRows() 时, 必须在将数据插入模型的底层数据存储之前调用此函数.

Theparent 索引对应于插入新列的父索引; first 和 last 是新行插入后的行号.

注意: 此函数发出 rowsAboutToBeInserted() 信号, 在插入数据之前, 已连接的视图(或代理)必须处理该信号. 否则, 视图可能会以无效状态结束.

参见 endInsertRows().

[protected] bool QAbstractItemModel::beginMoveColumns(const QModelIndex &sourceParent, int sourceFirst, int sourceLast, const QModelIndex &destinationParent, int destinationChild)

开始一个列移动操作.

当重新实现子类时, 此方法简化了模型中实体的移动. 此方法负责在模型中移动持久索引, 否则您将需要自己执行此操作. 使用 beginMoveColumns 和 endMoveColumns 是直接发送与 changePersistentIndex 一起的 layoutAboutToBeChanged 和 layoutChanged 的另一种选择.

sourceParent 索引对应于从其移出列的父级; sourceFirst 和 sourceLast 是要移动的列的第一列和最后一列. destinationParent 索引对应于将这些列移入的父级. destinationChild 是要将列移动到的列. 也就是说, sourceParent 中 sourceFirst 列的索引将成为 destinationParent 中的 destinationChild 列, 然后是所有其他列, 直到 sourceLast.

但是, 当在同一父目录下移动列时 (sourceParent 和 destinationParent 是相等的), 这些列将被放置在 destinationChild 索引之前. 也就是说, 如果你希望移动列0和1, 使它们变成列 1 和列 2, destinationChild 应该是 3. 在本例中, 源列 i (位于 sourceFirst 和 sourceLast之间) 的新索引等于 (destinationChild-sourceLast-1+i).

注意, 如果 sourceParent 和 destinationParent 是相同的, 你必须确保 destinationChild 不在 sourceFirst 和 sourceLast + 1 的范围内. 你还必须确保不会尝试将列移动到它自己的子列或祖先列中. 如果任一条件为真, 此方法将返回 false , 在这种情况下, 应中止移动操作.

This function was introduced in Qt 4.6.

参见 endMoveColumns().

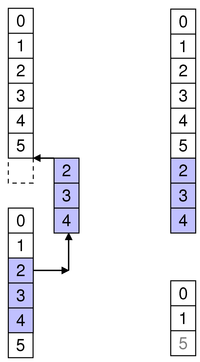

[protected] bool QAbstractItemModel::beginMoveRows(const QModelIndex &sourceParent, int sourceFirst, int sourceLast, const QModelIndex &destinationParent, int destinationChild)

开始一个行移动操作.

When reimplementing a subclass, this method simplifies moving entities in your model. This method is responsible for moving persistent indexes in the model, which you would otherwise be required to do yourself. Using beginMoveRows and endMoveRows is an alternative to emitting layoutAboutToBeChanged and layoutChanged directly along with changePersistentIndex.

The sourceParent index corresponds to the parent from which the rows are moved; sourceFirst and sourceLast are the first and last row numbers of the rows to be moved. The destinationParent index corresponds to the parent into which those rows are moved. The destinationChild is the row to which the rows will be moved. That is, the index at row sourceFirst in sourceParent will become row destinationChild in destinationParent, followed by all other rows up to sourceLast.

However, when moving rows down in the same parent (sourceParent and destinationParent are equal), the rows will be placed before the destinationChild index. That is, if you wish to move rows 0 and 1 so they will become rows 1 and 2, destinationChild should be 3. In this case, the new index for the source row i (which is between sourceFirst and sourceLast) is equal to (destinationChild-sourceLast-1+i).

Note that if sourceParent and destinationParent are the same, you must ensure that the destinationChild is not within the range of sourceFirst and sourceLast + 1. You must also ensure that you do not attempt to move a row to one of its own children or ancestors. This method returns false if either condition is true, in which case you should abort your move operation.

This function was introduced in Qt 4.6.

参见 endMoveRows().

[protected] void QAbstractItemModel::beginRemoveColumns(const QModelIndex &parent, int first, int last)

开始一个列移除操作.

When reimplementing removeColumns() in a subclass, you must call this function before removing data from the model's underlying data store.

The parent index corresponds to the parent from which the new columns are removed; first and last are the column numbers of the first and last columns to be removed.

注意: This function emits the columnsAboutToBeRemoved() signal which connected views (or proxies) must handle before the data is removed. Otherwise, the views may end up in an invalid state.

参见 endRemoveColumns().

[protected] void QAbstractItemModel::beginRemoveRows(const QModelIndex &parent, int first, int last)

开始一个行移除操作.

When reimplementing removeRows() in a subclass, you must call this function before removing data from the model's underlying data store.

The parent index corresponds to the parent from which the new rows are removed; first and last are the row numbers of the rows to be removed.

注意: This function emits the rowsAboutToBeRemoved() signal which connected views (or proxies) must handle before the data is removed. Otherwise, the views may end up in an invalid state.

参见 endRemoveRows().

[protected] void QAbstractItemModel::beginResetModel()

开始模型重置操作.

A reset operation resets the model to its current state in any attached views.

注意: Any views attached to this model will be reset as well.

When a model is reset it means that any previous data reported from the model is now invalid and has to be queried for again. This also means that the current item and any selected items will become invalid.

When a model radically changes its data it can sometimes be easier to just call this function rather than emit dataChanged() to inform other components when the underlying data source, or its structure, has changed.

You must call this function before resetting any internal data structures in your model or proxy model.

This function emits the signal modelAboutToBeReset().

This function was introduced in Qt 4.6.

参见 modelAboutToBeReset(), modelReset(), and endResetModel().

[virtual] QModelIndex QAbstractItemModel::buddy(const QModelIndex &index) const

Returns a model index for the buddy of the item represented by index. When the user wants to edit an item, the view will call this function to check whether another item in the model should be edited instead. Then, the view will construct a delegate using the model index returned by the buddy item.

The default implementation of this function has each item as its own buddy.

[virtual] bool QAbstractItemModel::canDropMimeData(const QMimeData *data, Qt::DropAction action, int row, int column, const QModelIndex &parent) const

Returns true if a model can accept a drop of the data. This default implementation only checks if data has at least one format in the list of mimeTypes() and if action is among the model's supportedDropActions().

Reimplement this function in your custom model, if you want to test whether the data can be dropped at row, column, parent with action. If you don't need that test, it is not necessary to reimplement this function.

参见 dropMimeData() and Using drag and drop with item views.

[virtual] bool QAbstractItemModel::canFetchMore(const QModelIndex &parent) const

Returns true if there is more data available for parent; otherwise returns false.

The default implementation always returns false.

If canFetchMore() returns true, the fetchMore() function should be called. This is the behavior of QAbstractItemView, for example.

参见 fetchMore().

[protected] void QAbstractItemModel::changePersistentIndex(const QModelIndex &from, const QModelIndex &to)

Changes the QPersistentModelIndex that is equal to the given from model index to the given to model index.

If no persistent model index equal to the given from model index was found, nothing is changed.

参见 persistentIndexList() and changePersistentIndexList().

[protected] void QAbstractItemModel::changePersistentIndexList(const QModelIndexList &from, const QModelIndexList &to)

Changes the {QPersistentModelIndex}es that are equal to the indexes in the given from model index list to the given to model index list.

If no persistent model indexes equal to the indexes in the given from model index list are found, nothing is changed.

This function was introduced in Qt 4.1.

参见 persistentIndexList() and changePersistentIndex().

[pure virtual] int QAbstractItemModel::columnCount(const QModelIndex &parent = QModelIndex()) const

Returns the number of columns for the children of the given parent.

In most subclasses, the number of columns is independent of the parent.

For example:

  int DomModel::columnCount(const QModelIndex &/*parent*/) const
  {
      return 3;
  }

注意: When implementing a table based model, columnCount() should return 0 when the parent is valid.

参见 rowCount().

[signal] void QAbstractItemModel::columnsAboutToBeInserted(const QModelIndex &parent, int first, int last)

在将列插入模型之前就发出此信号. 新item将位于给定父item下的首尾之间.

注意: 连接到这个信号的组件使用它来适应模型尺寸的变化. 它只能由 QAbstractItemModel 的实现发出, 不能在子类代码中显式发出.

注意: 这是一个私有信号. 它可以用于信号连接, 但不能由用户发出.

参见 insertColumns() 和 beginInsertColumns().

[signal] void QAbstractItemModel::columnsAboutToBeMoved(const QModelIndex &sourceParent, int sourceStart, int sourceEnd, const QModelIndex &destinationParent, int destinationColumn)

模型中的列被移动之前发出该信号. 将要移动的item是在给定sourceParent下在 sourceStart 和 sourceEnd 之间(包括首尾)的item. 它们将从 destinationParent 列开始移动到 destinationColumn.

注意: 连接到该信号的组件使用它来适应模型尺寸的变化. 它只能由 QAbstractItemModel 实现发出, 不能在子类代码中显式发出.

This function was introduced in Qt 4.6.

注意: 这是一个私有信号. 它可以用于信号连接, 但不能由用户发出.

参见 beginMoveRows().

[signal] void QAbstractItemModel::columnsAboutToBeRemoved(const QModelIndex &parent, int first, int last)

模型中的列被移除之前发出该信号. 将要移除的item是在给定 parent 下在 first and last 之间(包括首尾)的item.

注意: 连接到该信号的组件使用它来适应模型尺寸的变化. 它只能由 QAbstractItemModel 实现发出, 不能在子类代码中显式发出.

注意: 这是一个私有信号. 它可以用于信号连接, 但不能由用户发出.

参见 removeColumns() 和 beginRemoveColumns().

[signal] void QAbstractItemModel::columnsInserted(const QModelIndex &parent, int first, int last)

将列插入到模型之后发出该信号. 新的item是在给定 parent 下在 first 和 last 之间(包括首尾)的item.

注意: 连接到该信号的组件使用它来适应模型尺寸的变化. 它只能由 QAbstractItemModel 实现发出, 不能在子类代码中显式发出.

注意: 这是一个私有信号. 它可以用于信号连接, 但不能由用户发出.

参见 insertColumns() 和 beginInsertColumns().

[signal] void QAbstractItemModel::columnsMoved(const QModelIndex &parent, int start, int end, const QModelIndex &destination, int column)

模型中的列被移动之后发出这个信号. 新的item是在给定 parent 下, 在 start 和 end 之间(包括首尾)的item. 它们将从 column 列开始移动到 destination.

注意: 连接到该信号的组件使用它来适应模型尺寸的变化. 它只能由 QAbstractItemModel 实现发出, 不能在子类代码中显式发出.

This function was introduced in Qt 4.6.

注意: 这是一个私有信号. 它可以用于信号连接, 但不能由用户发出.

参见 beginMoveRows().

[signal] void QAbstractItemModel::columnsRemoved(const QModelIndex &parent, int first, int last)

模型中的列被移除之后发出这个信号. 移除的item是在给定 parent 下在 first 和 last 之间(包括首尾)的item.

注意: 连接到该信号的组件使用它来适应模型尺寸的变化. 它只能由 QAbstractItemModel 实现发出, 不能在子类代码中显式发出.

注意: 这是一个私有信号. 它可以用于信号连接, 但不能由用户发出.

参见 removeColumns() 和 beginRemoveColumns().

[protected] QModelIndex QAbstractItemModel::createIndex(int row, int column, void *ptr = Q_NULLPTR) const

Creates a model index for the given row and column with the internal pointer ptr.

When using a QSortFilterProxyModel, its indexes have their own internal pointer. It is not advisable to access this internal pointer outside of the model. Use the data() function instead.

This function provides a consistent interface that model subclasses must use to create model indexes.

[protected] QModelIndex QAbstractItemModel::createIndex(int row, int column, quintptr id) const

Creates a model index for the given row and column with the internal identifier, id.

This function provides a consistent interface that model subclasses must use to create model indexes.

参见 QModelIndex::internalId().

[pure virtual] QVariant QAbstractItemModel::data(const QModelIndex &index, int role = Qt::DisplayRole) const

Returns the data stored under the given role for the item referred to by the index.

注意: If you do not have a value to return, return an invalid QVariant instead of returning 0.

参见 Qt::ItemDataRole, setData(), and headerData().

[signal] void QAbstractItemModel::dataChanged(const QModelIndex &topLeft, const QModelIndex &bottomRight, const QVector<int> &roles = QVector<int> ())

现有 item 的数据发生改变时发出这个信号.

如果 item 是同一父, 则受影响的item是在 topLeft 和 bottomRight(包含)之间的item. 如果 item 没有相同的父, 则行为是不确定的.

重新实现 setData() 函数时, 必须显示地发出该信号.

可选的 roles 参数可用于指定实际修改了哪些数据角色. Roles 参数中的向量为空, 表示应将所有角色视为已修改. 角色参数中元素的顺序没有任何关联.

参见 headerDataChanged(), setData(), and layoutChanged().

[virtual] bool QAbstractItemModel::dropMimeData(const QMimeData *data, Qt::DropAction action, int row, int column, const QModelIndex &parent)

Handles the data supplied by a drag and drop operation that ended with the given action.

Returns true if the data and action were handled by the model; otherwise returns false.

The specified row, column and parent indicate the location of an item in the model where the operation ended. It is the responsibility of the model to complete the action at the correct location.

For instance, a drop action on an item in a QTreeView can result in new items either being inserted as children of the item specified by row, column, and parent, or as siblings of the item.

When row and column are -1 it means that the dropped data should be considered as dropped directly on parent. Usually this will mean appending the data as child items of parent. If row and column are greater than or equal zero, it means that the drop occurred just before the specified row and column in the specified parent.

The mimeTypes() member is called to get the list of acceptable MIME types. This default implementation assumes the default implementation of mimeTypes(), which returns a single default MIME type. If you reimplement mimeTypes() in your custom model to return multiple MIME types, you must reimplement this function to make use of them.

参见 supportedDropActions(), canDropMimeData(), and Using drag and drop with item views.

[protected] void QAbstractItemModel::endInsertColumns()

Ends a column insertion operation.

When reimplementing insertColumns() in a subclass, you must call this function after inserting data into the model's underlying data store.

参见 beginInsertColumns().

[protected] void QAbstractItemModel::endInsertRows()

Ends a row insertion operation.

When reimplementing insertRows() in a subclass, you must call this function after inserting data into the model's underlying data store.

参见 beginInsertRows().

[protected] void QAbstractItemModel::endMoveColumns()

Ends a column move operation.

When implementing a subclass, you must call this function after moving data within the model's underlying data store.

This function was introduced in Qt 4.6.

参见 beginMoveColumns().

[protected] void QAbstractItemModel::endMoveRows()

Ends a row move operation.

When implementing a subclass, you must call this function after moving data within the model's underlying data store.

This function was introduced in Qt 4.6.

参见 beginMoveRows().

[protected] void QAbstractItemModel::endRemoveColumns()

Ends a column removal operation.

When reimplementing removeColumns() in a subclass, you must call this function after removing data from the model's underlying data store.

参见 beginRemoveColumns().

[protected] void QAbstractItemModel::endRemoveRows()

Ends a row removal operation.

When reimplementing removeRows() in a subclass, you must call this function after removing data from the model's underlying data store.

参见 beginRemoveRows().

[protected] void QAbstractItemModel::endResetModel()

Completes a model reset operation.

You must call this function after resetting any internal data structure in your model or proxy model.

This function emits the signal modelReset().

This function was introduced in Qt 4.6.

参见 beginResetModel().

[virtual] void QAbstractItemModel::fetchMore(const QModelIndex &parent)

Fetches any available data for the items with the parent specified by the parent index.

Reimplement this if you are populating your model incrementally.

The default implementation does nothing.

参见 canFetchMore().

[virtual] Qt::ItemFlags QAbstractItemModel::flags(const QModelIndex &index) const

Returns the item flags for the given index.

The base class implementation returns a combination of flags that enables the item (ItemIsEnabled) and allows it to be selected (ItemIsSelectable).

参见 Qt::ItemFlags.

[virtual] bool QAbstractItemModel::hasChildren(const QModelIndex &parent = QModelIndex()) const

Returns true if parent has any children; otherwise returns false.

Use rowCount() on the parent to find out the number of children.

Note that it is undefined behavior to report that a particular index hasChildren with this method if the same index has the flag Qt::ItemNeverHasChildren set.

参见 parent() and index().

bool QAbstractItemModel::hasIndex(int row, int column, const QModelIndex &parent = QModelIndex()) const

Returns true if the model returns a valid QModelIndex for row and column with parent, otherwise returns false.

[virtual] QVariant QAbstractItemModel::headerData(int section, Qt::Orientation orientation, int role = Qt::DisplayRole) const

Returns the data for the given role and section in the header with the specified orientation.

For horizontal headers, the section number corresponds to the column number. Similarly, for vertical headers, the section number corresponds to the row number.

参见 Qt::ItemDataRole, setHeaderData(), and QHeaderView.

[signal] void QAbstractItemModel::headerDataChanged(Qt::Orientation orientation, int first, int last)

当标题改变时发出该信号. orientation 表示是横向标题还是竖向标题发生了改变. 标题中从 first 到 last 的部分需要更新.

重新实现 setHeaderData() 函数时, 必须显示地发出该信号.

如果要更改列数或行数, 则不需要发出此信号, 而可以使用 begin/end 函数 (有关子类化部分, 详见 QAbstractItemModel).

参见 headerData(), setHeaderData(), dataChanged().

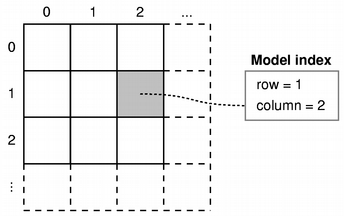

[pure virtual] QModelIndex QAbstractItemModel::index(int row, int column, const QModelIndex &parent = QModelIndex()) const

Returns the index of the item in the model specified by the given row, column and parent index.

When reimplementing this function in a subclass, call createIndex() to generate model indexes that other components can use to refer to items in your model.

参见 createIndex().

bool QAbstractItemModel::insertColumn(int column, const QModelIndex &parent = QModelIndex())

Inserts a single column before the given column in the child items of the parent specified.

Returns true if the column is inserted; otherwise returns false.

参见 insertColumns(), insertRow(), and removeColumn().

[virtual] bool QAbstractItemModel::insertColumns(int column, int count, const QModelIndex &parent = QModelIndex())

On models that support this, inserts count new columns into the model before the given column. The items in each new column will be children of the item represented by the parent model index.

If column is 0, the columns are prepended to any existing columns.

If column is columnCount(), the columns are appended to any existing columns.

If parent has no children, a single row with count columns is inserted.

Returns true if the columns were successfully inserted; otherwise returns false.

The base class implementation does nothing and returns false.

If you implement your own model, you can reimplement this function if you want to support insertions. Alternatively, you can provide your own API for altering the data.

参见 insertRows(), removeColumns(), beginInsertColumns(), and endInsertColumns().

bool QAbstractItemModel::insertRow(int row, const QModelIndex &parent = QModelIndex())

Inserts a single row before the given row in the child items of the parent specified.

注意: This function calls the virtual method insertRows.

Returns true if the row is inserted; otherwise returns false.

参见 insertRows(), insertColumn(), and removeRow().

[virtual] bool QAbstractItemModel::insertRows(int row, int count, const QModelIndex &parent = QModelIndex())

注意: The base class implementation of this function does nothing and returns false.

On models that support this, inserts count rows into the model before the given row. Items in the new row will be children of the item represented by the parent model index.

If row is 0, the rows are prepended to any existing rows in the parent.

If row is rowCount(), the rows are appended to any existing rows in the parent.

If parent has no children, a single column with count rows is inserted.

Returns true if the rows were successfully inserted; otherwise returns false.

If you implement your own model, you can reimplement this function if you want to support insertions. Alternatively, you can provide your own API for altering the data. In either case, you will need to call beginInsertRows() and endInsertRows() to notify other components that the model has changed.

参见 insertColumns(), removeRows(), beginInsertRows(), and endInsertRows().

[virtual] QMap<int, QVariant> QAbstractItemModel::itemData(const QModelIndex &index) const

Returns a map with values for all predefined roles in the model for the item at the given index.

Reimplement this function if you want to extend the default behavior of this function to include custom roles in the map.

参见 setItemData(), Qt::ItemDataRole, and data().

[signal] void QAbstractItemModel::layoutAboutToBeChanged(const QList<QPersistentModelIndex> &parents = QList<QPersistentModelIndex> (), QAbstractItemModel::LayoutChangeHint hint = QAbstractItemModel::NoLayoutChangeHint)

这个信号会在模型的布局改变之前发出. 连接到这个信号的组件使用它来适应模型布局的变化.

在发出 layoutAboutToBeChanged() 之后, 子类应该更新所有的持久化模型索引.

可选的 parents 参数用于提供更具体的通知关于模型布局的哪些部分正在被改变. 空列表表示对整个模型的布局进行了更改. parents 列表中元素的顺序不重要. 可选的 hint 参数用于提示模型重新布局时都发生了什么.

This function was introduced in Qt 5.0.

参见 layoutChanged() and changePersistentIndex().

[signal] void QAbstractItemModel::layoutChanged(const QList<QPersistentModelIndex> &parents = QList<QPersistentModelIndex> (), QAbstractItemModel::LayoutChangeHint hint = QAbstractItemModel::NoLayoutChangeHint)

每当模型公开的item的布局发生变化时, 就会发出这个信号, 例如, 对模型进行排序时. 当视图接收到该信号时, 应更新item的布局来反映此更改.

对 QAbstractItemModel 或 QAbstractProxyModel 子类化时, 请确保在更改项顺序或更改要公开给视图的数据的结构之前发出 layoutAboutToBeChanged() 信号，并在更改布局后发出 layoutChanged() 信号.

可选的 parents 参数用于给出有关模型布局的哪些部分正在更改的具体的通知. 空列表表示更改了整个模型的布局. parents 列表中元素的顺序并不重要. 可选的 hint 参数用于提示模型重新布局时发生的情况.

子类应在发出 layoutChanged() 信号之前更新所有持久模型索引. 换句话说, 当结构改变时:

• 发出 layoutAboutToBeChanged
• 记住将会改变的 QModelIndex
• 更新内部数据
• 调用 changePersistentIndex()
• 发出 layoutChanged

This function was introduced in Qt 5.0.

参见 layoutAboutToBeChanged(), dataChanged(), headerDataChanged(), modelReset(), changePersistentIndex().

[virtual] QModelIndexList QAbstractItemModel::match(const QModelIndex &start, int role, const QVariant &value, int hits = 1, Qt::MatchFlags flags = Qt::MatchFlags( Qt::MatchStartsWith | Qt::MatchWrap )) const

Returns a list of indexes for the items in the column of the start index where data stored under the given role matches the specified value. The way the search is performed is defined by the flags given. The list that is returned may be empty. Note also that the order of results in the list may not correspond to the order in the model, if for example a proxy model is used. The order of the results can not be relied upon.

The search begins from the start index, and continues until the number of matching data items equals hits, the search reaches the last row, or the search reaches start again - depending on whether MatchWrap is specified in flags. If you want to search for all matching items, use hits = -1.

By default, this function will perform a wrapping, string-based comparison on all items, searching for items that begin with the search term specified by value.

注意: The default implementation of this function only searches columns. Reimplement this function to include a different search behavior.

[virtual] QMimeData *QAbstractItemModel::mimeData(const QModelIndexList &indexes) const

Returns an object that contains serialized items of data corresponding to the list of indexes specified. The format used to describe the encoded data is obtained from the mimeTypes() function. This default implementation uses the default MIME type returned by the default implementation of mimeTypes(). If you reimplement mimeTypes() in your custom model to return more MIME types, reimplement this function to make use of them.

If the list of indexes is empty, or there are no supported MIME types, 0 is returned rather than a serialized empty list.

参见 mimeTypes() and dropMimeData().

[virtual] QStringList QAbstractItemModel::mimeTypes() const

Returns the list of allowed MIME types. By default, the built-in models and views use an internal MIME type: application/x-qabstractitemmodeldatalist.

When implementing drag and drop support in a custom model, if you will return data in formats other than the default internal MIME type, reimplement this function to return your list of MIME types.

If you reimplement this function in your custom model, you must also reimplement the member functions that call it: mimeData() and dropMimeData().

参见 mimeData() and dropMimeData().

[signal] void QAbstractItemModel::modelAboutToBeReset()

调用 beginResetModel() 时, 在模型的内部状态(例如持久模型索引)失效之前发出这个信号.

This function was introduced in Qt 4.2.

注意: 这是一个私有信号. 仅用于信号连接, 而不能由用户发出.

参见 beginResetModel() and modelReset().

[signal] void QAbstractItemModel::modelReset()

调用 endResetModel() 时, 在模型的内部状态(例如. 持久模型索引)失效之后发出这个信号 .

注意, 如果模型被重置, 则应该认为之前从模型中检索的所有信息都是无效的. 这包括但不限于 rowCount() and columnCount(), flags(), 通过 data()检索的数据, roleNames().

This function was introduced in Qt 4.1.

注意: 这是一个私有信号. 仅用于信号连接, 而不能由用户发出.

参见 endResetModel() and modelAboutToBeReset().

bool QAbstractItemModel::moveColumn(const QModelIndex &sourceParent, int sourceColumn, const QModelIndex &destinationParent, int destinationChild)

On models that support this, moves sourceColumn from sourceParent to destinationChild under destinationParent.

Returns true if the columns were successfully moved; otherwise returns false.

参见 moveColumns() and moveRow().

[virtual] bool QAbstractItemModel::moveColumns(const QModelIndex &sourceParent, int sourceColumn, int count, const QModelIndex &destinationParent, int destinationChild)

On models that support this, moves count columns starting with the given sourceColumn under parent sourceParent to column destinationChild under parent destinationParent.

Returns true if the columns were successfully moved; otherwise returns false.

The base class implementation does nothing and returns false.

If you implement your own model, you can reimplement this function if you want to support moving. Alternatively, you can provide your own API for altering the data.

参见 beginMoveColumns() and endMoveColumns().

bool QAbstractItemModel::moveRow(const QModelIndex &sourceParent, int sourceRow, const QModelIndex &destinationParent, int destinationChild)

On models that support this, moves sourceRow from sourceParent to destinationChild under destinationParent.

Returns true if the rows were successfully moved; otherwise returns false.

参见 moveRows() and moveColumn().

[virtual] bool QAbstractItemModel::moveRows(const QModelIndex &sourceParent, int sourceRow, int count, const QModelIndex &destinationParent, int destinationChild)

On models that support this, moves count rows starting with the given sourceRow under parent sourceParent to row destinationChild under parent destinationParent.

Returns true if the rows were successfully moved; otherwise returns false.

The base class implementation does nothing and returns false.

If you implement your own model, you can reimplement this function if you want to support moving. Alternatively, you can provide your own API for altering the data.

参见 beginMoveRows() and endMoveRows().

[pure virtual] QModelIndex QAbstractItemModel::parent(const QModelIndex &index) const

Returns the parent of the model item with the given index. If the item has no parent, an invalid QModelIndex is returned.

A common convention used in models that expose tree data structures is that only items in the first column have children. For that case, when reimplementing this function in a subclass the column of the returned QModelIndex would be 0.

When reimplementing this function in a subclass, be careful to avoid calling QModelIndex member functions, such as QModelIndex::parent(), since indexes belonging to your model will simply call your implementation, leading to infinite recursion.

参见 createIndex().

[protected] QModelIndexList QAbstractItemModel::persistentIndexList() const

Returns the list of indexes stored as persistent indexes in the model.

This function was introduced in Qt 4.2.

bool QAbstractItemModel::removeColumn(int column, const QModelIndex &parent = QModelIndex())

Removes the given column from the child items of the parent specified.

Returns true if the column is removed; otherwise returns false.

参见 removeColumns(), removeRow(), and insertColumn().

[virtual] bool QAbstractItemModel::removeColumns(int column, int count, const QModelIndex &parent = QModelIndex())

On models that support this, removes count columns starting with the given column under parent parent from the model.

Returns true if the columns were successfully removed; otherwise returns false.

The base class implementation does nothing and returns false.

If you implement your own model, you can reimplement this function if you want to support removing. Alternatively, you can provide your own API for altering the data.

参见 removeColumn(), removeRows(), insertColumns(), beginRemoveColumns(), and endRemoveColumns().

bool QAbstractItemModel::removeRow(int row, const QModelIndex &parent = QModelIndex())

Removes the given row from the child items of the parent specified.

Returns true if the row is removed; otherwise returns false.

This is a convenience function that calls removeRows(). The QAbstractItemModel implementation of removeRows() does nothing.

参见 removeRows(), removeColumn(), and insertRow().

[virtual] bool QAbstractItemModel::removeRows(int row, int count, const QModelIndex &parent = QModelIndex())

On models that support this, removes count rows starting with the given row under parent parent from the model.

Returns true if the rows were successfully removed; otherwise returns false.

The base class implementation does nothing and returns false.

If you implement your own model, you can reimplement this function if you want to support removing. Alternatively, you can provide your own API for altering the data.

参见 removeRow(), removeColumns(), insertColumns(), beginRemoveRows(), and endRemoveRows().

[protected slot] void QAbstractItemModel::resetInternalData()

这个槽函数在模型的内部数据被清除并被重置之后被调用.

这个槽函数为具体代理模型的子类提供了便利，例如维护了额外的数据的 QSortFilterProxyModel 的子类.

  class CustomDataProxy : public QSortFilterProxyModel
  {
      Q_OBJECT
  public:
      CustomDataProxy(QObject *parent)
        : QSortFilterProxyModel(parent)
      {
      }

      ...

      QVariant data(const QModelIndex &index, int role)
      {
          if (role != Qt::BackgroundRole)
              return QSortFilterProxyModel::data(index, role);

          if (m_customData.contains(index.row()))
              return m_customData.value(index.row());
          return QSortFilterProxyModel::data(index, role);
      }

  private slots:
      void resetInternalData()
      {
          m_customData.clear();
      }

  private:
    QHash<int, QVariant> m_customData;
  };

注意: 由于错误, 这个槽函数没有出现在 Qt 5.0. 中.

This function was introduced in Qt 4.8.

参见 modelAboutToBeReset() and modelReset().

[virtual slot] void QAbstractItemModel::revert()

让模型知道它应该丢弃缓存的信息. 这个函数通常用于行编辑.

参见 submit().

[virtual] QHash<int, QByteArray> QAbstractItemModel::roleNames() const

Returns the model's role names.

The default role names set by Qt are:

This function was introduced in Qt 4.6.

参见 setRoleNames().

[pure virtual] int QAbstractItemModel::rowCount(const QModelIndex &parent = QModelIndex()) const

Returns the number of rows under the given parent. When the parent is valid it means that rowCount is returning the number of children of parent.

注意: When implementing a table based model, rowCount() should return 0 when the parent is valid.

参见 columnCount().

[signal] void QAbstractItemModel::rowsAboutToBeInserted(const QModelIndex &parent, int start, int end)

在将行插入模型之前就发出该信号. 新 item 将位于给定 parent item 下的包含 start 和 end 之间.

注意: 连接到该信号的组件使用它来适应模型尺寸的变化。它只能由 QAbstractItemModel 实现发出, 而不能在子类代码中显式发出.

注意: 这是一个私有信号. 仅用于信号连接, 而不能由用户发出.

参见 insertRows() 和 beginInsertRows().

[signal] void QAbstractItemModel::rowsAboutToBeMoved(const QModelIndex &sourceParent, int sourceStart, int sourceEnd, const QModelIndex &destinationParent, int destinationRow)

模型中的行被移动之前发出该信号. 将要移动的item是在给定 sourceParent 下在 sourceStart 和 sourceEnd 之间(包括首尾)的item. 它们将从 destinationRow 列开始移动到 destinationParent.

注意: 连接到该信号的组件使用它来适应模型尺寸的变化。它只能由 QAbstractItemModel 实现发出, 而不能在子类代码中显式发出.

This function was introduced in Qt 4.6.

注意: 这是一个私有信号. 仅用于信号连接, 而不能由用户发出.

参见 beginMoveRows().

[signal] void QAbstractItemModel::rowsAboutToBeRemoved(const QModelIndex &parent, int first, int last)

模型中的行被移除之前发出该信号. 将要移除的 item 是在给定 parent 下在 first 和 last 之间(包括首尾)的item.

注意: 连接到该信号的组件使用它来适应模型尺寸的变化。它只能由 QAbstractItemModel 实现发出, 而不能在子类代码中显式发出.

注意: 这是一个私有信号. 仅用于信号连接, 而不能由用户发出.

参见 removeRows() and beginRemoveRows().

[signal] void QAbstractItemModel::rowsInserted(const QModelIndex &parent, int first, int last)

将行插入到模型之后发出这个信号. 新的item是在给定 parent 下在 first 和 last 之间(包括首尾)的item.

注意: 连接到该信号的组件使用它来适应模型尺寸的变化。它只能由 QAbstractItemModel 实现发出, 而不能在子类代码中显式发出.

注意: 这是一个私有信号. 仅用于信号连接, 而不能由用户发出.

参见 insertRows() and beginInsertRows().

[signal] void QAbstractItemModel::rowsMoved(const QModelIndex &parent, int start, int end, const QModelIndex &destination, int row)

模型中的行被移动之后发出该信号. 新的itme是在给定 parent 下在 start 和 end 之间(包括首尾)的item. 它们将从 column 列开始移动到 destination.

注意: 连接到该信号的组件使用它来适应模型尺寸的变化。它只能由 QAbstractItemModel 实现发出, 而不能在子类代码中显式发出.

This function was introduced in Qt 4.6.

注意: 这是一个私有信号. 仅用于信号连接, 而不能由用户发出.

参见 beginMoveRows().

[signal] void QAbstractItemModel::rowsRemoved(const QModelIndex &parent, int first, int last)

模型中的行被移除之后发出该信号. 移除的item是在给定 parent 下在 first 和 last 之间(包括首尾)的item.

注意: 连接到该信号的组件使用它来适应模型尺寸的变化。它只能由 QAbstractItemModel 实现发出, 而不能在子类代码中显式发出.

注意: 这是一个私有信号. 仅用于信号连接, 而不能由用户发出.

参见 removeRows() and beginRemoveRows().

[virtual] bool QAbstractItemModel::setData(const QModelIndex &index, const QVariant &value, int role = Qt::EditRole)

Sets the role data for the item at index to value.

Returns true if successful; otherwise returns false.

The dataChanged() signal should be emitted if the data was successfully set.

The base class implementation returns false. This function and data() must be reimplemented for editable models.

参见 Qt::ItemDataRole, data(), and itemData().

[virtual] bool QAbstractItemModel::setHeaderData(int section, Qt::Orientation orientation, const QVariant &value, int role = Qt::EditRole)

Sets the data for the given role and section in the header with the specified orientation to the value supplied.

Returns true if the header's data was updated; otherwise returns false.

When reimplementing this function, the headerDataChanged() signal must be emitted explicitly.

参见 Qt::ItemDataRole and headerData().

[virtual] bool QAbstractItemModel::setItemData(const QModelIndex &index, const QMap<int, QVariant> &roles)

Sets the role data for the item at index to the associated value in roles, for every Qt::ItemDataRole.

Returns true if successful; otherwise returns false.

Roles that are not in roles will not be modified.

参见 setData(), data(), and itemData().

[virtual] QModelIndex QAbstractItemModel::sibling(int row, int column, const QModelIndex &index) const

Returns the sibling at row and column for the item at index, or an invalid QModelIndex if there is no sibling at that location.

sibling() is just a convenience function that finds the item's parent, and uses it to retrieve the index of the child item in the specified row and column.

This method can optionally be overridden for implementation-specific optimization.

参见 index(), QModelIndex::row(), and QModelIndex::column().

[virtual] void QAbstractItemModel::sort(int column, Qt::SortOrder order = Qt::AscendingOrder)

Sorts the model by column in the given order.

The base class implementation does nothing.

[virtual] QSize QAbstractItemModel::span(const QModelIndex &index) const

Returns the row and column span of the item represented by index.

注意: Currently, span is not used.

[virtual slot] bool QAbstractItemModel::submit()

让模型知道它应该将缓存的信息提交到永久存储. 这个函数通常用于行编辑.

如果没有错误，返回 true; 否则返回 false.

参见 revert().

[virtual] Qt::DropActions QAbstractItemModel::supportedDragActions() const

Returns the actions supported by the data in this model.

The default implementation returns supportedDropActions(). Reimplement this function if you wish to support additional actions.

supportedDragActions() is used by QAbstractItemView::startDrag() as the default values when a drag occurs.

参见 setSupportedDragActions(), Qt::DropActions, and Using drag and drop with item views.

[virtual] Qt::DropActions QAbstractItemModel::supportedDropActions() const

Returns the drop actions supported by this model.

The default implementation returns Qt::CopyAction. Reimplement this function if you wish to support additional actions. You must also reimplement the dropMimeData() function to handle the additional operations.

This function was introduced in Qt 4.2.

参见 dropMimeData(), Qt::DropActions, and Using drag and drop with item views.
